Electrical Training Equipment

AC Machine Trainer Electrical Training Workbench Educational Equipment

Item No.: ZE3114
AC Machine Trainer Electrical Training Workbench Educational Equipment for college, university.
INQUIRY
Description

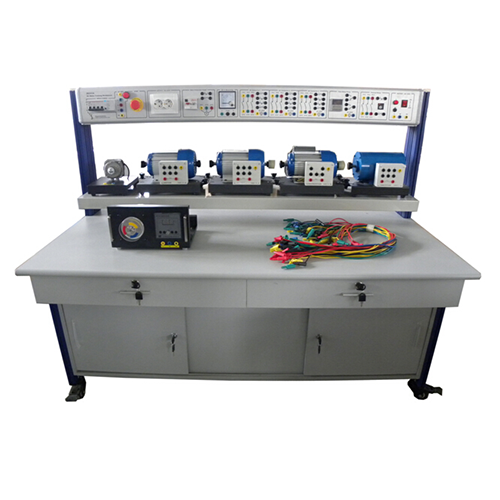

ZE3114 AC Machine Trainer Electrical Training Workbench Educational Equipment
1 Product overview
1.1 Profile
This trainer include various types of inductive motors and control components,
through experiments students can be familiar with AC motor features, master its
control principles and control mode, it will cultivate students’ technical skills and
knowledge. The trainer is suitable for vocational school students, technical schools
students, colleges students who major in electrical technology, electronics
technology, mechatronics technology etc.


1.2 Character
(1) Training workbench use aluminum column structure frame, it include
meter box and power box to test and measure technical parameter, it is
easy to use and it is not easy to be broken.
(2) Equipped with motors, students can make combination, and finish many
training contents.
(3) Training workbench has high safety system.
2 Technical parameter
(1) Input power: three phase, five wires, 380V±10% 50Hz
(2) Dimension: 1600mm×800mm×1300mm(stand type)
Dimension: 1600mm×400mm×600mm(frame type=desktop type)
(3) Whole capacity:<2.0KVA
(4) Weight: <200kg
(5) Work environment:
Environment temperature: -10℃~+40℃
Relative humidity: <85%(25℃)
3 Product consist of
3.1 Power control panel
Power control panel use aluminum structure metal panel, all close type
boxes structure
3.2 Training workbench(only for stand type)
Training workbench use aluminum structure. There are universal 4 wheels at the bottom of workbench, there are 2 breakers on wheel. The trainer can be moved or stop convenient . The workbench panel thick is 25mm high density substrate , there is high temperature high pressure anti-fire treatment process. It equip with three guide rail type drawer, 2 push and plug cabinet. The structure is sound and reliable, outlook is beautiful.
3.3 Power control panel
(1) Three phases, five wires power input, it has been tested by leakage
breaker control, it has emergency stop button, you can cut off electricity
when emergency.
(2) Equipment with power indicator, Europe socket output plug, 4mm safety power
output sockets.
(3) Equipment with AC motor protection switch, inner with AC power supply, with short
circuit protection function.


4 Training content
4.1 Single phase capacitor electro experiment
(1) Single phase capacitor static test
(2) Single phase capacitor principle, feature and function test
(3) Single phase capacitor start function control
(4) Single phase capacitor double value capacitor switching control
4.2 Single phase mask pole motor experiment
(1) Single phase mask pole motor static test
(2) Single phase mask pole motor principle, feature and function test
(3) Single phase mask pole motor start function control
4.3 Three-phase asynchronous double speed motor experiment
(1) Three-phase asynchronous double speed motor static test
(2) Three-phase asynchronous double speed motor principle, feature and function
test
(3) Three-phase asynchronous double speed motor high speed and low speed
function control
(4) Three-phase asynchronous double speed motor speed convert(change
speed)control
4.4 Three phase squirrel-cage asynchronous motor experiment
(1) Three phase squirrel-cage asynchronous motor principle and feature
(2) Three phase squirrel-cage asynchronous motor static test
(3) Three phase squirrel-cage asynchronous motor function test
(4) Three phase squirrel-cage asynchronous motor Positive and negative conversion to control
(5) Three phase squirrel-cage asynchronous motor star-triangle start control
(6) Three phase squirrel-cage asynchronous motor thermal delay overcurrent relay control
(7) Time relay control three phase squirrel-cage asynchronous motor start and delay stop
4.5 Three-phase winding type slip ring motors experiment
(1) Three-phase winding type slip ring motors principle and feature
(2) Three-phase winding type slip ring motors static test
(3) Three-phase winding type slip ring motors connection and fucntion
(4) Three-phase winding type slip ring motors function specification test
(5) Three-phase winding type slip ring motors start and stop control
(6)Slip ring rotor starter application
4.6 Three-phase ac permanent magnet synchronous motor experiment
(1) Three-phase ac permanent magnet synchronous motor principle and feature
(2) Three-phase ac permanent magnet synchronous motor static test
(3) Three-phase ac permanent magnet synchronous motor connection and function
(4) Three-phase ac permanent magnet synchronous motor start control experiment
(5) Three-phase ac permanent magnet synchronous motor speed operation control
(6) Three-phase ac permanent magnet synchronous motor close loop control experiment
Supply English user manual.
