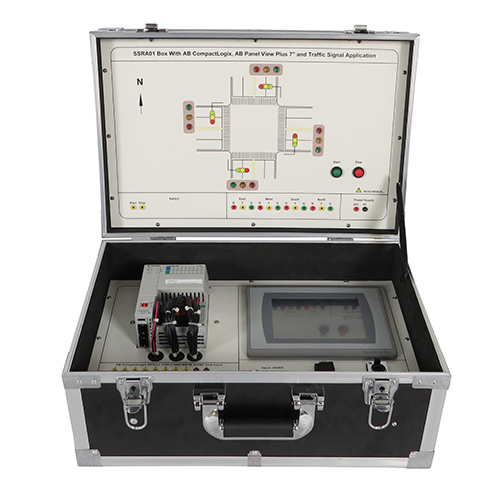

ZE3452 Box With AB Compact Logic, AB Panel View Plus 7" and Traffic Signal Application Didactic Equipment Teaching Workbench Electrical Training Equipment
1. Product Introduction
1.1 Product Description
The principle of traffic lights (traffic lights) is actually a signal system based on time, traffic flow or intelligent control. The core goal is to orderly allocate road access rights, ensure traffic safety and improve traffic efficiency.
1.2 Product Features
Through the control system (fixed, inductive or adaptive), the right of way (green light time) is assigned orderly to the traffic flow phases of different directions and different steering according to time planning or real-time traffic needs.
2. Technical Specifications
2.1 Technical parameters
Power supply parameters: Single-phase three-wire AC 220V ±5% 50Hz
2.2 Dimensions and weight
Size: 480mm*320mm*260mm
Weight: <10kg
3. Introduction to product component name and function
3.1 Product main part
| NO. |
Name |
Qty. |
| 1 |
Traffic light panel |
1 |
| 2 |
PLC |
1 |
| 3 |
HMI |
1 |
| 4 |
USB port |
1 |
| 5 |
Net port |
1 |
3.2 Product accessories section
| NO. |
Name |
Qty. |
| 1 |
Three-core British power cord 3*0.75 square 1.5m tailgate with safety plug |
1 |
| 2 |
2mm electrical safety cable 100cm red |
10 |
| 3 |
2mm electrical safety cable 100cm black |
10 |
| 4 |
2mm electrical safety cable 100cm yellow |
10 |
| 5 |
2mm electrical safety cable 100cm blue |
5 |
| 6 |
2mm electrical safety cable 100cm green |
10 |
| 7 |
Network cable 1.5 meters |
1 |
| 8 |
Fuse 10A 5mm*20mm |
5 |
| 9 |
USB |
1 |
4. Product teaching experiment list (see the experimental instructions for details)
(1) Traffic light operation experiment
