Item No.: ZE3465A

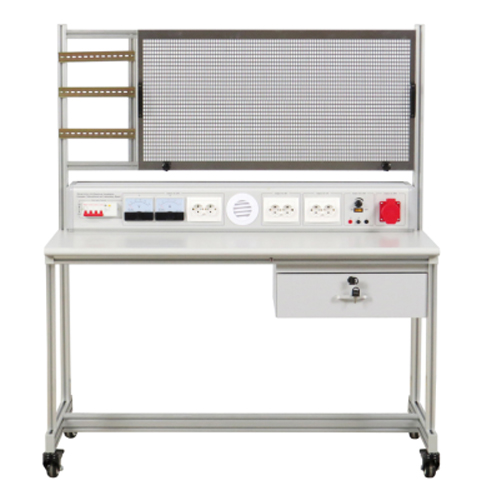

ZE3465A Electrical Installation Complex School Training Bench Vocational Trainer Workbench Electrical Training Equipment
INQUIRY
Description
ZE3465A Electrical Installation Complex School Training Bench Vocational Trainer Workbench Electrical Training Equipment
1. Product Introduction
1.1 Product Description
An environmentally friendly electrical wiring training device designed for teaching, mainly used for practical teaching of electrical control and other courses. Its core features are green materials, economical and durable, safe and convenient. It aims to help students master circuit connection, troubleshooting and other skills through modular design, while reducing teaching costs and maintenance difficulties
1.2 Product Features
Long-life design: corrosion-resistant, anti-aging, long service life, and reduced long-term replacement costs.
Energy-saving design: optimize circuit structure, reduce power loss, and support low-voltage safety training
Multi-functional training support: electrical equipment can be installed on the grid frame to complete a series of wiring training for classic circuit training.
Safe and reliable: The 4mm safety terminal blocks, European standard sockets, and industrial waterproof plugs used are inaccessible to metal contacts in non-operating states to prevent students from accidentally touching them. The wiring station is made of high-insulation paint, not easy to scratch, with a wide operating temperature range, dustproof and waterproof, to avoid the risk of short circuits caused by liquid splashing and dust intrusion.
Protection function: The leakage protector can effectively cut off all outputs. When the circuit is overloaded, short-circuited or leaking, the power supply can be effectively cut off to ensure safety.
2. Technical specifications
2.1 Basic technical parameters
Working power supply Single-phase three-wire AC 220V ±5% 50Hz
Working environment -10℃～+40℃
2.2 Equipment appearance parameters
Dimension 1255mmX630mmX1460mm test bench
950mmX500mm grid frame
Weight <200kg

3. Product introduction
3.1 Product main part
No. Name Quantity
1 Frame part 1
2 Power box part 1
3 Grid frame part 1
3.2 Product power box
No. Name Quantity
1 Main power switch 1
2 AC voltmeter 1
3 AC ammeter 1
4 European socket 1 1
5 Ventilation port 1
6 European socket 2 1
7 European socket 3 1
8 4mm safety terminal 2
9 Fuse holder 1
10 Potentiometer 1
11 DC2-30V power switch 1
12 Industrial waterproof socket 1
3.3 Product accessories
No. Name Quantity
1 Fuse tube 5
2 Plastic mounting clip 20
4. Product teaching experiment list
(1) Basic use of equipment
