Description

ZE3473 Electrical Maintenance Skills Training Simulation Teaching System Teaching Workbench Equipment Educational Technology Electrical Training Equipment
1. Product Introduction
1.1 Product Description

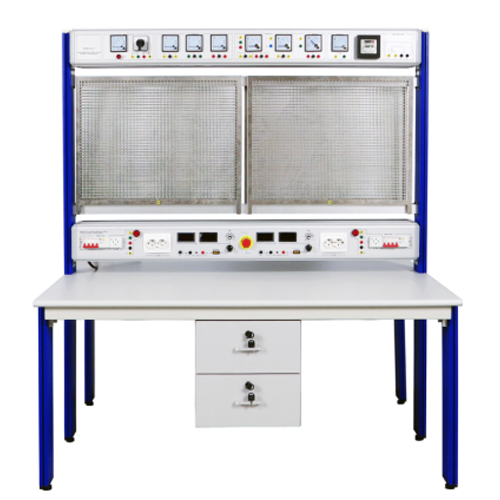

Electrical Maintenance Skills Training Simulation Teaching System is an electrical maintenance skills training device designed for vocational schools, technical schools and training institutions. The system simulates a real industrial electrical control environment, provides a wealth of electrical measurement, debugging and troubleshooting functions, and is suitable for students and teachers to teach and practice electrical maintenance skills.
The equipment adopts a modular design, including upper and lower power boxes, middle fences and bottom storage cabinets. It has a compact structure and complete functions, which can meet a variety of electrical experiments and maintenance training needs.
1.2 Product Features
Real industrial-grade configuration: using industrial standard electrical components, simulating a real maintenance environment, and improving students' practical skills.
Multi-function measuring instruments: equipped with a variety of mechanical and digital display instruments, which can measure parameters such as voltage, current, power, power factor, etc.
Safety protection design: equipped with emergency stop buttons and grounding terminals to ensure the safety of practical training.
Adjustable DC power supply: provides 0~30V adjustable DC output to meet different experimental needs.
Modular structure: upper and lower power boxes + middle fence design, convenient for maintenance and expansion.
Ample storage space: bottom storage cabinet, convenient for storing tools and accessories.
2. Technical specifications
2.1 Basic technical parameters

Working power supply

Three-phase five-wire AC 380V 50Hz

2.2 Equipment appearance parameters

Appearance dimension	1600mmX1370mmX1800mm
Connection board dimension	640mmX730mm
Weight	≤200kg

3. Product introduction
3.1 Product main part

No.	Name	Quantity
1	Instrument box	2
2	Power box	4
3	Cabinet	4

3.2 Product instrument box

No.	Name	Quantity
1	Three-phase AC voltage meter	2
2	AC current meter	6
3	Three-phase power meter	2
4	Single-phase power meter	2
5	Power factor meter	2
6	Frequency meter	2
7	Watt-hour meter	2

3.3 Product power box

No.	Name	Quantity
1	4P circuit breaker	4
2	Modular three-phase socket	4
3	AC 380V output terminal	4
4	Power indicator	4
5	European socket	4
6	Adjustable DC output unit	4
7	Emergency stop switch	2

3.4 Product accessories

No.	Name	Quantity
1	4mm electrical safety connection cable(two-color)	4
2	4mm electrical safety connection cable (yellow)	10
3	4mm electrical safety connection cable (black)	10
4	4mm electrical safety connection cable (red)	10
5	4mm electrical safety connection cable (green)	10
6	Plastic mounting clip	80
7	Flat head self-tapping screw	80
8	Industrial waterproof plug	1

4. Product teaching experiment list
(1) Three-phase asynchronous motor line voltage measurement experiment
(2) Three-phase asynchronous motor star (Y) connection current measurement experiment
(3) Three-phase motor star (Y) connection power measurement experiment
(4) Single power meter power measurement experiment (incandescent lamp)
(5) Three-phase motor power factor measurement experiment
(6) Three-phase power supply frequency measurement experiment
(7) Single-phase watt-hour meter wiring and power measurement experiment in three-phase circuit
