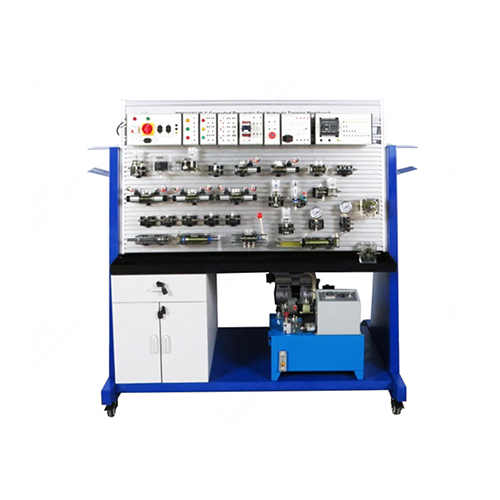

ZMH2105P PLC Controlled Double sides Hydraulic and pneumatic Training Workbench Vocational Training Equipment for college, university.

INQUIRY

Description

ZMH2105P PLC Controlled Pneumatic and Hydraulic Training Test Bench Didactic Equipment Vocational Training Equipmen

Using Allen Bradley (Rockwell Automation) PLC Flat-form Power Supply: 220VAC, single Phase, 60Hz.
Brief introduction:
The experimental device uses double-sided structure, ie an experimental table provides places for doing pneumatic and hydraulic test experiment for two groups of four students. It can simultaneously do double-sided comprehensive pneumatic and hydraulic experiments, optimizing and sharing resources and improving products’ performance. Its overall structure is simple and practical.
The training equipment is iron double matte dense spray pattern, which is beautiful, durable and practical. The basic configuration is as following: 1 set of pneumatic training components; 1 set of pneumatic PLC control module; 1 piece of low noise air compressor; 1 set of hydraulic training components; 1 set of hydraulic PLC control module; 1 piece of hydraulic test pump. The optional configuration is the computer.
This training system uses a dedicated independent hydraulic test pump with variable speed DC motor system with oil pressure setting function. You can set safe working pressure of output oil pressure. With all common hydraulic components: Each hydraulic component is equipped with mounting plate, which can be easily and freely placed in the aluminum alloy hydraulic components on the panel (the panel with "T" slot in the form of aluminum alloy structure). Oil lap using quick-change connectors; convenient disconnect without leakage.
With this set of training equipment, you can do pneumatic control and hydraulic control circuit and its corresponding basic application experiments. It can also be integrated with each other to carry out the following experiment: realized pneumatic - electric control, pneumatic - hydraulic control, electric - fluid control, and pneumatic - electric - hydraulic integrated control.

Product Detail

Technical parameters of pneumatic part


	1. Pneumatic components

2. Main technical parameters:
2.1 Power: AC 220V 50HZ
2.2  DC power: input AC220V, output DC 24V/2A
2.3  Air compressor
2.4  Motor power: 250W power: AC220V
2.5  Nominal capacity: 10L
2.6  Rated output voltage: 1Mpa
2.7  Training Equipment dimensions: 1500mm*900mm*1700mm
3.   Basic experimental Pneumatic circuit
3. single-acting cylinder commutation circuit
4. double-acting cylinder commutation circuit
5. single-acting cylinder speed control loop
6. double-acting cylinder-way flow control loop
7. double-acting cylinder bi-speed circuit
8. the speed loop for access
9. buffer circuit
10. the secondary pressure control loop
11. high and low voltage conversion circuit
12. counting loop
13. the delay loop
14. overload protection circuit
15. interlock circuit 1
16. single-cylinder reciprocating control loop
17. single-cylinder reciprocating continuous loop
18. linear cylinders, rotary cylinders loop sequence of actions
19. multi-cylinder sequence of actions loop
20. twin synchronized action loop
21. four-cylinder linkage loop
22. the unloading circuit
23. gate circuit type shuttle valve applications
24. quick exhaust valve application circuit

Configuration list of pneumatic part:

No		Item	QTY
1	Air source	Air compressor XY5.2 dual connector	1 piece
2	Experimental table	Experimental table	1 piece
3	Experimental bench	Components fixed stand	1 piece
4	Electrical control part	DC switching power supply unit(DC24V)	1 set
		Signal input unit
		Relay control unit
5	Components	Single-acting cylinder QGX25×100	1 piece
6	Components	Dual-acting cylinder GGX25×100	2 pieces
7	Components	Triple pieces AC2000 Triple pieces	1 piece
8	Components	Pressure reducing valve (with pressure gauge) AR2000	1 piece
9	Components	Manual valve 4H210-08	1 piece
10	Components	Single solenoid valve(two five-way) 4V210-08(DC24V)	2 pieces
11	Components	Dual solenoid valve(two five-way) 4V210-08(DC24V)	1 piece
12	Components	Single solenoid valve(three five-way) 4V210-08(DC24V)	1 piece
13	Components	Single gas valve (two- pass) 4A210-08	2 pieces
14	Components	Dual gas valve (two-pass) 4A210-08	2 pieces
15	Components	Rotary valve(machine control) MOV-2	1 piece
16	Components	Rotary valve(button) MOV-3A	1 piece
17	Components	Door type shuttle valve ST-02	2 pieces
18	Components	Quick exhaust valve 1/4 QE-02	2 pieces
19	Components	One-way throttle valve RE-02	2 pieces
20	Components	One-way throttle valve JSC601	7 pieces
21	Components	Way valve 1/4	2 pieces
22	Components	Sequence valve	2 pieces
23	Components	Gas volume	1 piece
24	Components	Six-way	2 pieces
25	Components	Limit switch	4 pieces
26	Material	Experimental manual	1 piece
27	Components	Allen	2 pieces
28	Components	screwdriver	2 pieces
29	Components	Wrench 150*19	1 piece
30	Components	Pliers	1 piece
31	Components	Scissors	1 piece
32	Components	Muffler(small) 1/8	2 pieces
33	Components	Muffler(big) 3/8	1 piece
34	Components	Tee (T-Tee) Φ6	4 pieces
35	Components	Tee(Y-type reducing tee) Φ8-Φ6	1 piece
36	Components	Four way Φ6	2 pieces
37	Components	L-type (threaded two-pass) 601	2 pieces
38	Components	L-type (threaded two-pass) 602	2 pieces
39	Components	Vent plugs Φ6	25 pieces
40	Components	Fuse 2.5A	5 pieces
41	Components	Button switch	3 pieces
42	Components	Windpipe PU Windpipe 6*4	1 roll

Technical Parameter of the hydraulic part
1. Main technical parameters:
Power: AC220V 50HZ
DC power input AC220V, output DC24V/3A
Motor power of the hydraulic pump: 400W, adjustable speed range: 0-1500RMP
Size: 550mm*350mm*450mm
the hydraulic pump works with a distance of 1.5m from the hydraulic table, the distant noise is 58Db
The dimensions of the training device: 1500*900mm*1700mm
2. Experiment topics:
1. commutation loop with a manual valve
2. latching loop with “o” “M” type function valve
3. latching loop with pilot operated check valve
4. pressure settings loop
5. two grades pressure loop
6. decompression loop with reducing valve
7. pressurized loop with pressurized cylinder
8. unloading loop with H type valve
9. inlet throttle lo
