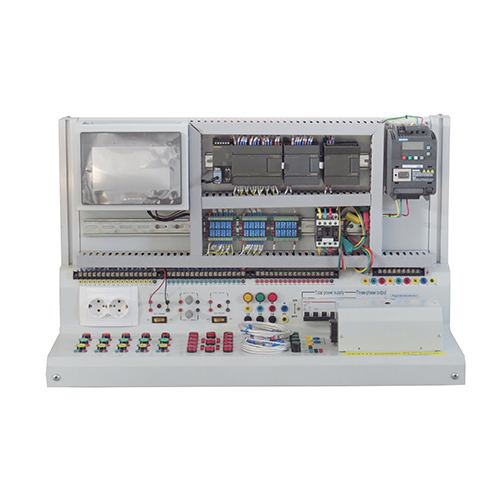

ZE3111 PLC Trainer Kit Didactic Equipment Technical Teaching Equipment Electrical Training Kit
1. Overview
PLC trainer is suitable for electrical laboratory. Students learn PLC program knowledge in this trainer.
It is used in technical institution, vocational training center, college, engineering university.
It practice students hand on ability on Siemens S7-1200 PLC technical skills, PLC program.
Supply teaching edition PLC software(free edition).
It is applied in electrical engineering department, electrician technical skills.
2.Technical data Input voltage: single phase three wires(1±10%)50 Hz/60Hz
Work environment: environment temperature:-5℃～＋40℃
Capacity:＜1KVA
Safety protection: leakage current≤30mA,
over current protection, fuse protector
Dimension:900mm×350mm×900mm
3.Experiment list
1.Basic cognition training for PLC various modules
2.PLC hardware connection training
3.Digital input and output connection training
4.quantity input and output connection training (it requires module)
5.Basic instruction experiment
6.Timer and counter instruction experiment
7.Shifting register instruction experiment
8.Set/reset and pulse instruction experiment 9.Jump instruction experiment
10.Common function instruction experiment
11. quantity input and output programming training (it requires quantity module)
12.PLC program training
13.touch screen training
14.temperature control training
