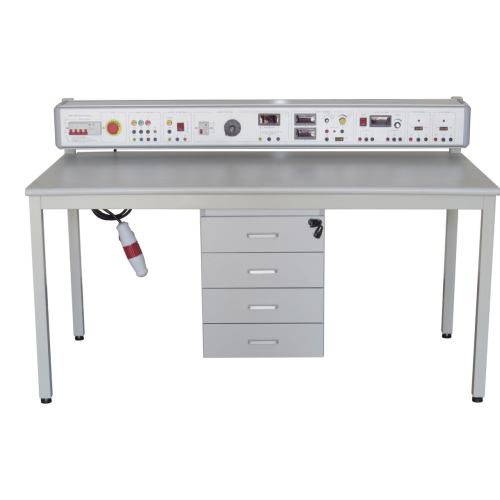

SR6132E Workbench Didactic Equipment Electrical Laboratory Equipment
1 Product Overview
1.1 Overview
This training device includes various types of induction motors and industrial control components. Through relevant experiments, you can be familiar with the operating characteristics of AC motors, DC motors and transformers, master their control principles and control methods, and cultivate students' corresponding knowledge and skills. It is suitable for teaching and skill training assessment of related majors in higher vocational schools, vocational schools, secondary vocational schools and technical schools.
1.2 Features
(1) The training platform adopts an aluminum profile column frame structure, and the measuring instrument and the training power supply are built-in integrated installation, which is easy to use and not easy to be damaged.
(2) The motor is fully equipped and can be used in combination to complete the training content of various courses.
(3) The training platform has a good safety protection system.
2 Performance parameters
(1) Input power supply: three-phase five-wire system 380V±10% 50Hz
(2) Dimensions: 1500*800*940
(3) Overall capacity: <1.5KVA
(4) Weight: <150kg
(5) Working conditions: ambient temperature -10℃～+40℃, relative humidity <85% (25℃)
3 Product Composition
3.1 Power box
The power control screen adopts an aluminum alloy profile panel, a closed box structure, and is connected to the lower shelf as a whole.
3.2 Training table
The training table is supported by aluminum profile columns, and the bottom universal wheel has brakes. The tabletop is made of 25mm thick high-density substrate, and the surface is veneered with high temperature and high pressure fireproof board. It is equipped with four-section guide-type drawers. The structure is firm and beautiful.
3.3 Power Box Configuration
1- circuit breaker
2- Emergency stop switch
3-AC380V power output
4-AC220V power output
5-AC0-250V output
6-DC0-30V output
7-DC PWM
8-DC12V power supply
9-DC24V power supply
3.4 Companion Devices
(1) Several K4 test lines
(2) Experimental bench
