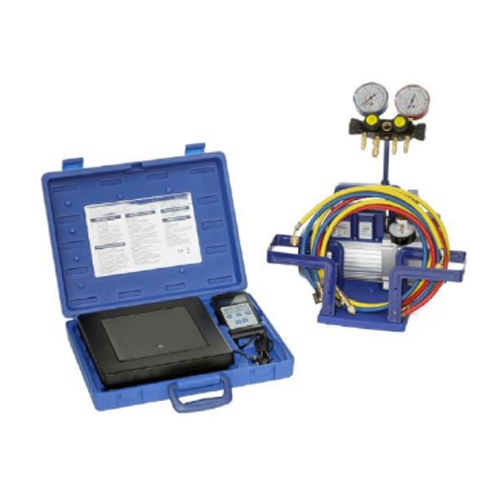

SR20401 Refrigerant Filling and Evacuation Equipment School Laboratory Equipment Educational School Training Bench Refrigeration Trainer Brand: ShouldShine
Model: SR20401
Specification
[1] Portable equipment
[2] Vacuum pump and filling balance
[3] 4-valve assembly aid
[4] Pulsation-damped manometer for intake pressure, high pressure; vacuum meter
[5] Manometer for intake and high pressure with temperature scale for refrigerant R134a
[6] High pressure and intake pressure connections
Technical Data
Vacuum pump: motor power: 0,25kW,
intake volume: 66L/min, final vacuum: 0,02mbar
Measuring ranges
- intake pressure: -1...8bar
- high pressure: 0...31bar
- vacuum: 0...1000mbar
Dimensions and Weight
l x w x h: 510x175x485mm
l x w x h: 370x270x60mm (filling balance)
Weight: approx. 15kg
Connections
230V, 50/60Hz, 1 phase or 120V, 60Hz/CSA, 1 phase
