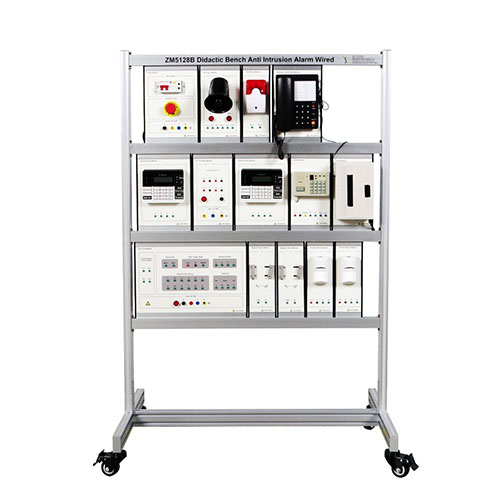

ZM5128B Didactic Bench Anti Intrusion Alarm Wired School Equipment Training Educational Workbench Building Training Equipment I.Product Overview
1.1 Overview
This training device is an anti-theft system training device used in factories and homes. It can enable students to understand and master the working principle and system composition of the anti-theft alarm system, cultivate students' corresponding knowledge and skills, and is suitable for teaching and skill training assessment of relevant majors in higher vocational colleges, technical colleges, secondary vocational schools and technical schools.
1.2 Features
(1) The training platform adopts an aluminum profile column hanging box structure, and the operation training platform is built with aluminum alloy. The bottom of the training platform is equipped with universal wheels, which can be flexibly moved.
(2) The sensors are complete in variety and can be used in combination in a variety of ways.
(3) The overall structure adopts an open and detachable type, which can easily replace modules. The module content is determined according to the principle of having productive functions and integrated learning functions, so that the required modules can be conveniently selected during teaching or competition.
(4) The training and assessment device is a low-voltage component and is safe to use.
(5) The training platform has a good safety protection system. II.Performance Parameter
2.1 Technical Parameters
Power supply parameters: single-phase three-wire 220V±10% 50Hz
Complete machine capacity: <1.0KVA
Working environment conditions: ambient temperature -10℃～+40℃ Relative humidity <85% (25℃)
2.2 Dimensions and Weight
Size: 1000mm×600mm×1500mm
Weight: <60kg III.Components List and Detailed Introduction
3.1 Main Part
Number Name
1 Aluminum alloy frame
2 Power module
3 Alarm speaker module
4 Keyboard display module
5 DC 12V power module
6 Alarm host module
7 Telephone
8 Small siren module
9 Telephone switch
10 Auto dialing module
11 Door magnetic sensor module
12 Wired infrared detector module
13 Universal caster 3.2 Accessories
Number Name
1 2mm electrical cable red
2 2mm electrical cable yellow
3 2mm electrical cable black
4 2mm electrical cable green
5 4mm electrical cable yellow
6 4mm electrical cable two-color
7 4mm electrical cable blue
8 RJ11 to 2mm line
9 Fuse IV. Product Configuration List
Number Name Quantity
1 Power module 1
2 DC 12V power module 1
3 Alarm host module 1
4 Keyboard display module 2
5 Alarm speaker module 1
6 Wired infrared detector module 2
7 Small siren module 1
8 Door magnetic sensor module 2
9 Auto dialing module 1
10 Phone 1
11 Phone switch 1
12 2mm electrical cable red 10
13 2mm electrical cable yellow (including 0.5m test line) 20
14 2mm electrical cable black 10
15 2mm electrical cable green 2
16 4mm electrical cable yellow 2
17 4mm electrical cable two-color 2
18 4mm electrical cable blue 2
19 RJ11 to 2mm line 1
20 Fuse 5 V.Experiment List
Experiment 1 Wired infrared sensor switch characteristic experiment
Experiment 2 Door magnetic sensor switch characteristic experiment
Experiment 3 Alarm host function setting experiment
Experiment 4 Various sensor probe access experiment
Experiment 5 System comprehensive experiment
