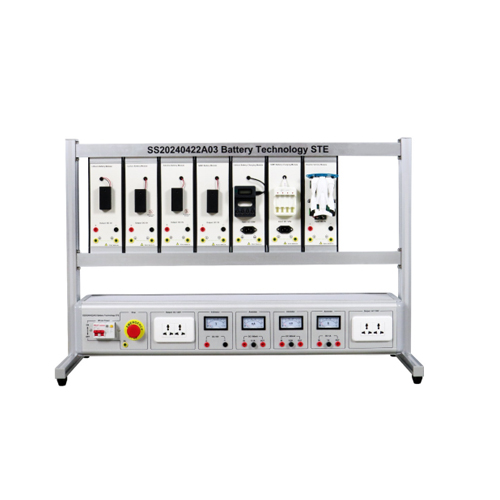

SS20240422A03 Battery Technology STE Teaching Workbench Vocational Education Equipment Renewable Training Equipment
1. Product Introduction
1.1 Product Description
Against the background of the increasing importance of renewable energy and electric vehicles, the subject of battery technology is becoming more and more important in vocational education.
The device is equipped with disposable batteries and rechargeable batteries. The power load is powered by the battery. The voltmeter monitors the battery voltage. If the battery is low, it can be charged by the charging module.
1.2 Product Features
1. Stable voltage: During the discharge process, the carbon battery can provide a relatively stable voltage
2. Rechargeable: NiMH batteries and lithium batteries can be recharged and used repeatedly
3. Strong environmental adaptability: Carbon batteries have strong adaptability to the environment and can work in a wide temperature range
4. Environmental protection: Lithium batteries do not contain harmful substances and are environmentally friendly.
5. Long life: In the case of low current discharge, alkaline batteries have a longer service life
6. Low self-discharge rate: Lithium batteries have less power loss when not in use
2. Technical specifications
2.1 Technical parameters
Equipment power supply: AC110V
Charger: AC110V/AC220V-5V2A
2.2 Dimensions and weight
Dimensions: 1100mm×450mm×800mm
Weight: <38kg
3. Product component names and function introduction
3.1 Product main part
No. Name
1 Lithium battery module
2 Carbon battery module
3 Alkaline battery module
4 NiMH battery module
5 Lithium battery charging module
6 NiMH battery charging module
7 Four-wheel drive vehicle load module
3.2 Product electrical part
No. Name
1 Circuit breaker
2 Emergency stop switch
3 Socket
4 DC voltmeter (50V)
5 DC ammeter (100mA)
6 DC ammeter (500mA)
7 DC ammeter (1A)
3.3 Product accessories
No. Name
1 No. 5 carbon dry cell battery
2 No. 5 alkaline battery
3 4mm safety electrical cable (double)
4 4mm safety electrical cable (red)
5 4mm safety electrical cable (black)
6 Fuse (5A)
7 Fuse (1A)
8 Internal resistance tester
9 American power cord
4. Product Configuration List
No. Name Qty
1 Lithium battery module 1
2 NiMH battery module 1
3 Alkaline battery module 1
4 Carbon battery module 1
5 Lithium battery charging module 1
6 NiMH battery charging module 1
7 Four-wheel drive load module 1
8 Circuit breaker 1
9 Emergency stop switch 1
10 Socket 2
11 DC voltmeter (50V) 1
12 DC ammeter (100mA) 1
13 DC ammeter (500mA) 1
14 DC ammeter (1A) 1
15 AA carbon dry cell 4
16 AA alkaline battery 4
17 AA battery storage box 4
18 4mm safety electrical cable (double) 5
19 4mm safety electrical cable (red) 10
20 4mm safety electrical cable (black) 10
21 Fuse (5A) 1
22 Fuse (1A) 10
23 Internal resistance tester 1
24 American power cord 2
5. Product teaching experiment list
(1) Alkaline battery discharge experiment
(2) Lithium battery discharge experiment
(3) Lithium battery charging experiment
(4) How to determine the maximum battery life
