Synchronous Generator Drive Training Unit Didactic Equipment School Equipment Training Electrical Training Equipment

Name: Synchronous Generator Drive Training Unit Didactic Equipment School Equipment Training Electrical Training Equipment
Brand: Jinan Should Shine Didactic Equipment Co., Ltd.
SKU: ZE1215
Availability: InStock

Item No.: ZE1215

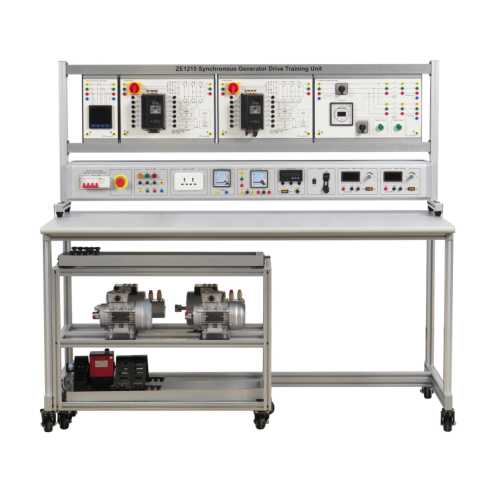

ZE1215 Synchronous Generator Drive Training Unit Didactic Equipment School Equipment Training Electrical Training Equipment

INQUIRY

Description

ZE1215 Synchronous Generator Drive Training Unit Didactic Equipment School Equipment Training Electrical Training Equipment
1. Product Introduction
1.1 Product Description
This training bench includes typical application circuit units for three-phase asynchronous motors and three-phase synchronous generators. Through related experiences, you can become familiar with the electrical characteristics of controlling a three-phase salient-pole generator, master its control principles and methods, and train students' coping abilities.
1.2 Product Features
(1) The training bench adopts an aluminum profile column frame structure. The measuring instruments and training power supply are integrated into one unit. Each unit is flexible, easy to operate, and not easily damaged.
(2) The motor is equipped with a dedicated base, which can be directly connected to a DC motor to form a generator load group. The wiring and working status can be monitored intuitively to complete the training content of various courses.
(3) Related units can be flexibly added or removed according to the experimental subjects to meet the needs of different users.
(4) The training bench has a good safety protection system.
2. Technical Specifications
2.1 Basic Technical Parameters

Power Supply	Three-phase five-wire system, 380V±10% 50Hz
Operating Environment	Ambient Temperature -10℃ ～ +40℃ Relative Humidity ＜85% (25℃)
Total Capacity	<1.5KVA

2.2 Equipment Dimension

Dimension	1600mm × 600mm × 800mm
Weight	<380kg

3. Product Introduction
3.1 Main Body

No.	Name	Quantity
1	Template	4
2	Power Supply Box	1
3	Desktop	1
4	Cart (Frame)	1
5	Motor Set	4
6	Motor Control Components	2

3.2 Product Modules

No.	Name	Quantity
1	Three-phase Multifunction Meter Module	1
2	Frequency Converter Module	2
3	Synchronization Module	1

3.3 Product Power Supply Box

No.	Name	Quantity
1	Circuit Breaker	1
2	Emergency Stop Switch	1
3	Three-phase five-wire power supply	1
4	Power socket	3
5	Voltmeter	1
6	Power meter	1
7	Electronic tachometer	1
8	Torque-speed-mechanical power display meter	1
9	Excitation power supply	2

3.4 Product Accessories

No.	Name	Quantity
1	Phase sequencer	1
2	Fuse	10
3	Fuse	10
4	Fuse	10
5	4mm electrical safety connection cable	10
6	4mm electrical safety connection cable	10
7	4mm electrical safety connection cable	10
8	4mm electrical safety connection cable	10
9	4mm electrical safety connection cable	5
10	4mm electrical safety connection cable	5
11	USB connection cable	1
12.	Three-core British power cord	2
13.	USB flash drive	1
14	Torque transmitter data cable	1

4. Product Teaching Experiment List
(1) Parallel Connection of Synchronous Generators
(2)Synchronous Generator Grid Connection
Ensure the phase sequence is the same before performing parallel connection and grid connection operations
