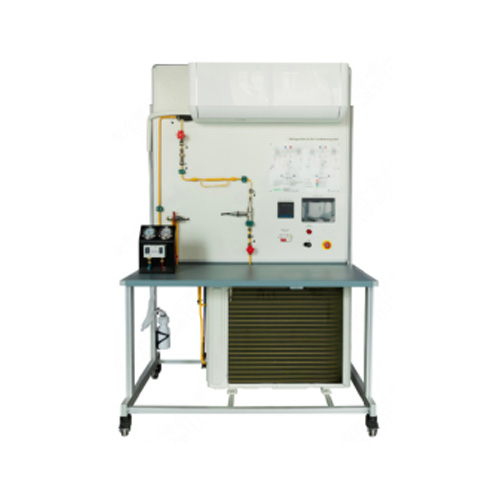

Training bench for studying split system air conditioners Vocational Trainer Workbench Educational Laboratory Bench Refrigeration Trainer
Item No.: SSR26227B3701
SSR26227B3701 Training bench for studying split system air conditioners Vocational Trainer Workbench Educational Laboratory Bench Refrigeration Trainer
SSR26227B3701 Training bench for studying split system air conditioners Vocational Trainer Workbench Educational Laboratory Bench Refrigeration Trainer
Enabling learners to achieve at least the following educational objectives:
- Design of split system air conditioning
- Compressor
- Condenser
- Thermostatic expansion valve
- Evaporator
- Thermodynamic cycle in the refrigeration cycle
- Learning the different connections
- How a refrigeration/heat pump system works
- Operation of a refrigeration/heat pump system
- Learning the appropriate method for charging and discharging a refrigeration system
- Checking for refrigerant leaks in the air conditioning system
- Reading, understanding, wiring, and testing the electrical circuits of the air conditioning system Troubleshooting at least the following faults:
- Display board fault.
- Room temperature sensor fault.
- Compressor relay fault
- Condenser fan relay fault
- Condenser fan fault.
- Reversing valve relay fault
- Reversing valve fault.
- Evaporator fan motor fault
It must be equipped with control, shut-off, and electrical safety devices such as an emergency stop button.
It must include at least:
- A reversible split system air conditioner with a cooling capacity of 9000 or 12000 BTU
- Freon charge connections
- Freon charge connections
- Condensate pump module
- Level switch module
- Overload switch module
- Remote control.
Power supply: 220 V-240 VAC 50 Hz
With pratical manual
