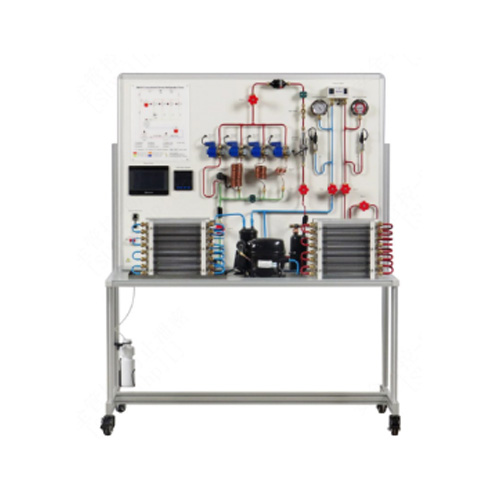

Compression refrigeration cycle training bench School Training Bench Educational Laboratory Bench Skills Training Equipment Refrigerator Trainer
Item No.: SSR26227B3601
SSR26227B3601 Compression refrigeration cycle training bench School Training Bench Educational Laboratory Bench Skills Training Equipment Refrigerator Trainer
SSR26227B3601 Compression refrigeration cycle training bench School Training Bench Educational Laboratory Bench Skills Training Equipment Refrigerator Trainer
Enabling learners to achieve at least the following educational objectives:
- Identification of a refrigeration system
- Identification of fluid expansion devices with defrost control devices
- Identification and visualization of the refrigerant state
- Identification and visualization of the state of the refrigerant
- Taking measurements and displaying temperatures at different points in the cycle, before and after the evaporator and before and after the condenser.
- Taking measurements and displaying pressure at different points in the cycle.
- Identification and understanding of the role of the filter drier
- Identification of faults with warning device
- Identification and understanding of the role of the pressure switch (compressor safety device)
- Identification and understanding of the role of the thermostat (overheating and evaporator temperature control during the refrigeration cycle)
- Identification and understanding of the role of the pressure switch (compressor safety device)
- Identification and understanding of the role of the filter drier
- Identification and understanding of the role of the evaporator coil
- Identification and understanding of the role of the condenser coil
- Identification and understanding of the role of the compressor
- Identification and understanding of the role of the expansion device
- Identification and understanding of the role of the heat exchanger
- Identification and understanding of the role of the refrigerant reservoir (the effect of the refrigerant reservoir on the coefficient of performance COP)
- Simulate at least 4 faults on the circuit
- A minimum volume accumulator of 2 liters, temperature range: -35°C to 60°C minimum, operating pressure up to 30 bar minimum
- At least one pressure switch
- A heat exchanger with an operating temperature up to 200°C
- Pt 100 temperature sensor
- Low pressure gauge
- High pressure gauge
- Evaporator with a capacity between 800 and 1000 watts
- One compressor operating on R134a
- Power supply 220 V-240 VAC 50 Hz
- practical training manual
