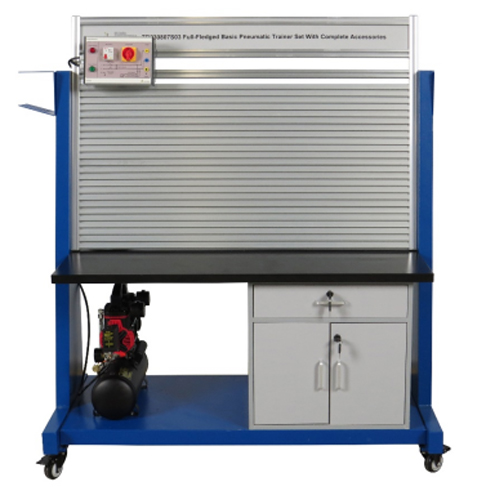

Full-Fledged Basic Pneumatic Trainer Set With Complete Accessories School Educational Equipment Vocational Trainer Workbench Pneumatic Trainer Kit

Item No.: ZMP002

ZMP002 Full-Fledged Basic Pneumatic Trainer Set With Complete Accessories School Educational Equipment Vocational Trainer Workbench Pneumatic Trainer Kit

SSR26227B3601Download

INQUIRY

Description

ZMP002 Full-Fledged Basic Pneumatic Trainer Set With Complete Accessories School Educational Equipment Vocational Trainer Workbench Pneumatic Trainer Kit
1. Product Introduction
1.1 Product Description
In addition to standard basic pneumatic control circuit experiments, this system can also simulate pneumatic control technology application experiments and pneumatic technology course design, making it a typical mechatronics experimental device.
Through practical experiments and course design, students can accurately grasp the structure of pneumatic components, the control principles and design methods of pneumatic circuits, and other control principles.
1.2 Product Features
(1) Meet the actual application requirements of the base and teaching and training system
(2) The equipment has a solid structure and good stability
(3) Low operating noise
(4) Clear layout and attractive design
2. Technical specifications
2.1 Basic technical parameters

Working power supply

Three-phase five-wire AC 380V

2.2 Equipment appearance parameters

Dimension	1630mm650mm1600mm
Weight	≤100kg

3. Product introduction
3.1 Product main part

Number	Name	Quantity
1	Power module	1
2	Back panel	1
3	Silent pump	1
4	Cabinet	1

3.2 Product accessories

Number	Name	Quantity
1	4mm electrical safety connection cable (2 meters double-ended black)	36
2	4mm electrical safety connection cable (2 meters double-ended blue)	35
3	4mm electrical safety connection cable (2m double-ended red)	35

4. Product teaching experiment list
(1) Basic power supply control and start-stop experiment of gas source
