1. Product Introduction
1.1 Product Description

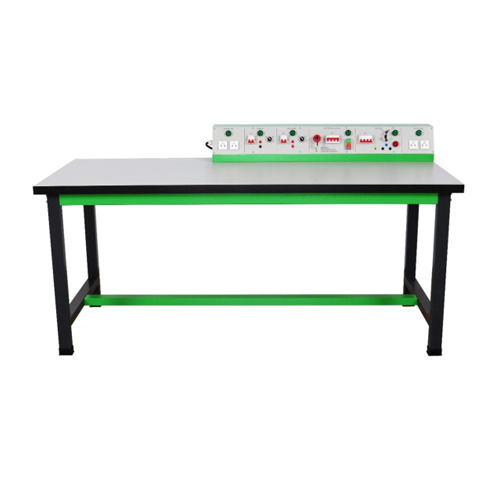

Electrical processing station, simple, fully equipped, in line with current standards, high quality, safe and reliable.
The workbench is equipped with equipment start switch, connection terminals and various power supply units. Equipped with a key-operated "emergency stop" button for independent control to ensure safety, and a start/stop button with indicator light and "memory" function.
1.2 Product Features
The general training device, through experimental teaching, enables students to master basic technical knowledge and skills, cultivate students' practical operation ability and application skills, cultivate students' basic ability to analyze and solve problems, and lay a good foundation for professional courses. The electrician's table has more complete safety protection measures and more complete functions.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: 400VAC/24VAC/240VDC/230VAC
Light color: green/red
Variable three-phase unit: no
Fixed DC: yes
Fixed AC: yes
2.2 Weight and dimensions
Dimensions: 2000mm×750mm×1020mm
Weight: <300kg

3. Product component names and function introduction
3.1 Product main part
NO.    Name    Qty.
1    Main workbench    1
2    Power supply unit module    6
3.2 Product module part
NO.    Name    Qty.
1    230VAV socket power supply unit    2
2    240VDC power supply unit    1
3    24VAC power supply unit    1
4    Three-phase power supply unit    1
5    400VAC three-phase power supply unit    1
3.3 Product accessories
NO.    Name    Qty.
1    4mm safety electrical cable 1m double ended black    5
2    4mm safety electrical cable 1m double ended blue    5
3    4mm safety electrical cable 1m double ended yellow    5
4    4mm safety electrical cable 1 meter double ends double colors    5
5    4mm safety electrical cable 1m double ended red    5
6    4mm safety electrical cable 1m double ended green    5
4. Product power-on test list (see the test guide for details)
(1) 230VAC power supply unit test
The unit outputs 230V AC voltage, has no separate control switch, and cannot be adjusted
(2) 24VAC power supply unit test
The unit outputs 24V AC voltage, has a separate control switch, and cannot be adjusted
(3) 240VDC power supply unit test
The unit outputs 24V AC voltage, has a separate control switch, and cannot be adjusted
(4) 400VAC power supply unit test
The unit outputs 24V AC voltage, has a separate control switch, and cannot be adjusted
