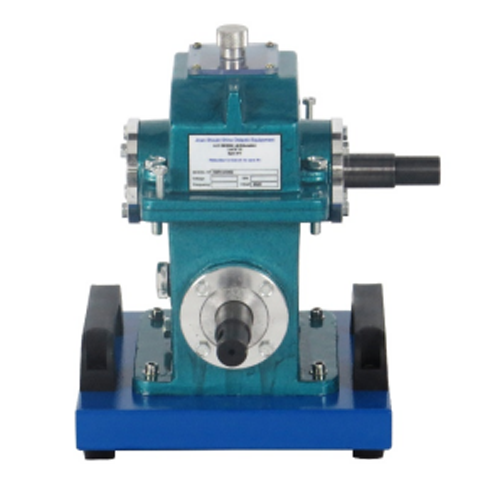

SSR250724A01 Worm and wheel gearbox Didactic Equipment School Equipment Training Mechanical Training Equipment
Document link
steel output shafts rotational guidance with angular contact ball bearings -contact ball bearings, provide 4 obstacles on the inner rings and 2 stops on the outer rings. These obstacles and stops must be diversified (locknut, snap ring, washer, set screw...). ) -Spacer rings must be metal -steel input shafts with Single row angular contact ball bearings (2 obstacles on the inner rings and 2 stops on the outer rings with different solutions: cover + snap ring screwed cover + braking -Oil seal -Dimensions : L = 220mm I =220 mm h = 250mm
