Renewable Energy Lab Equipment

Wind Power And Solar Power Generation Training Equipment, Educational Equipment

Item No.: ZM2121

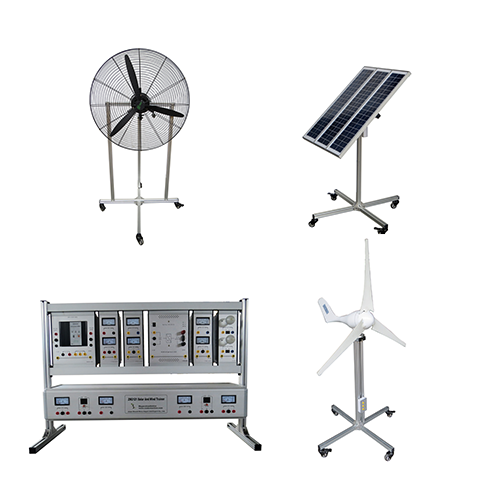

ZM2121 Wind Power And Solar Power Generation Training Equipment Renewable Training Equipment for college, university.
INQUIRY
Description
ZM2121 Wind Power And Solar Power Generation Training Equipment Renewable Training Equipment
I. Equipment Overview
1 Introduction
1.1 Overview
This training system simulate demo wind and solar generate electricity process, enable students to learn
wind and solar generate electricity. Wind driven generator is driven by fan, solar energy panel is
driven by high work power metal halide. This trainer cultivate students hand on ability, it’s suitable for
engineering university, training institute, technical schools.
1.2 Feature

(1)This trainer use aluminum column structure, with inner integrated measurement meters, there is universal wheels at the bottom, it’s easy to move.
(2) It can do many experiment circuit and components, students can combine them to different circuit, do
different experiments and training content.
(3) Training workbench with safety protection system.
2. Performance parameter
(1) Wind power generation set: wind power generation is consisted of fan unit and air-blower unit, it adopts aluminum profile structure, the bottom of equipment is with universal wheels, the boundary dimension of fan unit is 800mm*800mm*1500mm(length× width× height), the boundary dimension of air-blower is 800mm*800mm*1500mm(length× width× height).
(2) Solar power generation device: full aluminum structure, adjustable photovoltaic panel, boundary dimension is 800mm*800mm*1200mm(length× width× height).
(3) Power box unit: aluminum profile structure, aluminum hanging box , boundary dimension 1080mm
×300mm×740mm(length× width× height).
(4) Single solar energy cell plate:
Rated peak value work power: 20Wp
Short circuit current:1.9A
Peak value current:1.7A
Open circuit voltage:18.5V
(5) Fan technical specifications:
Fan type: horizontal direction toward
Start speed: 2.5 meters/second
Rated fan speed:10 meters/second
Maximum anti wind speed:40meter/second
Rated work power: 200-500W
Wind direction adjust: auto adjust
(6)  Battery technical specification:
Voltage:12V
Volume:12Ah
Battery lost electricity:10V±1V
Executive standard: GB/T 9535
Relative humidity: 35~85RH(Non-condensate)
(7) Work condition:
Temperature-10+40
Temperature≤80
Environment air: no corrosivity air, no fuel air,  no large quantity of conductive dust
(8) Power:

Consumption: ≤5000W,
Work power: AC220±5%, DC12V/24V
Work mode: continuous
Power supply: connect in series or in parallel
Work mode: continuously
3. System introduction
This system is consisted of four parts: wind power system, photovoltaic power generation system, control system and inverter system. The wind power system is consisted of air-blower, generator and battery. Photovoltaic power system is consisted of photovoltaic cell panel and battery. Control system is made up of wind and solar power generation controller. Inverter system is made up of frequency inverter and load unit.
Simulative wind power generator, this system adopts horizontal shaft permanent magnet synchronous generator, it adopts air-blower to simulate natural wind, air-blower can select three wind speed, this system can simulate the change of wind direction and wind power through changing the speed and location of air-blower, then it can detect the generation effect under the corresponding condition. Simulation wind power generator is as shown below.
Simulation wind power generator
As shown above, the left picture is wind power generator, the wind power generator output is three phases AC 12V, output terminal connect to the connection box which located in the underneath of equipment. Right picture is air-blower unit, its power supply is single phase AC 220V50Hz, when it working, connect the pedestal of two portion together through profile connecting rod. As shown below.
Connecting mode of simulation wind power generator
2. Simulative photovoltaic power generation system: this system adopts three pieces of 18V,20W solar panel, it can carry out series and parallel connection according to different system voltage, it can simulate the sunlight location through adjusting the relative location with photovoltaic panel, then it’s easy to simulate demonstration of various sunlight condition. Simulation photovoltaic power generator as shown below.
The output of photovoltaic cell panel connect to connecting box which located in the rear of device, output it through safety terminal. The rated output voltage of single block photovoltaic cell panel is 18V, three pieces of cell panel can operate individual, and it also can operate in parallel.
Simulation photovoltaic power generator
3. Battery set: it is consist of two pieces of 12V/12AH maintenance-free no-service battery, it also can connect in parallel as 12V200AH system, it also can connect in series as 24V/100AH system, it can enhance the understanding of battery series and parallel connection. Battery integrated in the internal of power box, battery output terminal connect to power box panel. In the picture, 1 and 2 are the battery output portion, it output through red and black terminal.
