TB-230117R-001 Flat Plate Collector Trainer Didactic Equipment School Equipment Training Renewable Training Equipment
1. Product Introduction
1.1 Product Description

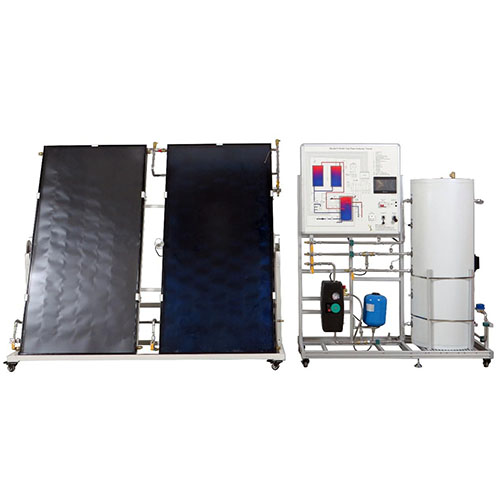

The flat plate collector is an experimental device for studying solar thermal energy. It can measure and collect various data such as temperature, flow rate, pressure, etc. and realize data communication. The device supports local and software remote operation. It can simulate the entire process of domestic hot water production, storage, and transportation. This device has two flat plate collectors and has higher thermal energy collection efficiency.
1.2 Product Features
(1) The product has excellent electrical safety performance and adopts excellent protection design and grounding reliability.
(2) The product design is beautiful and simple in structure.
(3) The product adopts anti-corrosion measures and solid materials, which are strong and durable, greatly extending the service life of the product.
2. Technical Specifications
2.1 Technical parameters
Power supply parameters: single-phase three-wire AC 220 V.
Working environment conditions: ambient temperature -10℃～+40℃, relative humidity < 85% (25℃).
2.2 Dimensions and weight
Dimensions: 1600 mm×600 mm×1900 mm
Weight: 400 kg
3. Product Component Names and Function Introduction
3.1 Product main body
No. Name Qty.
1 Flat plate collector 1 1
2 Flat plate collector angle adjuster 1
3 Flat plate collector 2 1
4 Light intensity sensor 1
5 Exhaust valve 2
6 Main drain pipe 1
7 Main water inlet pipe 1
8 Output AC 220 V socket 1
9 Touch screen 1
10 Circuit breaker 1
11 External heat source indicator 1
12 Sensor line interface 1
13 Network port 1
14 External heat source water inlet 1
15 External heat source drain outlet 1
16 Circulating pipeline water outlet 1
17 Circulating pipeline water inlet 1
18 Pressure and temperature mechanical meter 1
19 Circulating water pump 1
20 Pressure tank 1
21 Manual exhaust valve 1
22 Water end drain outlet 1
23 Electric heater 1
24 Water meter 1
3.2 Product accessories
No. Name Qty.
1 Black silicone tube inner diameter 16 mm single layer high temperature resistance 120℃ 10 meters 2
2 Signal line 1
3 Network cable 1
4 Inner diameter 16 mm transparent steel wire hose high temperature resistance 160° 1
5 USB flash drive 1
6 Pipe clamp 11
4. Product Teaching Experiment List (See The Experiment Guide For Details)
(1) Working condition 1: Automated method to deal with the risk of frost and freezing
(2) Working condition 2: Automated method when the light intensity is good
(3) Working condition 3: Automated method when the light intensity is good and the hot water demand is too high
(4) Working condition 4: Automated method when the light intensity is poor
