Hydrogen Fuel Cell Training Kit Teaching Workbench Equipment Educational Technology Renewable Energy Trainer Solar Power Teaching System

Name: Hydrogen Fuel Cell Training Kit Teaching Workbench Equipment Educational Technology Renewable Energy Trainer Solar Power Teaching System
Brand: Jinan Should Shine Didactic Equipment Co., Ltd.
SKU: TB-220726-V-204
Availability: InStock

Item No.: TB-220726-V-204

TB-220726-V-204 Hydrogen Fuel Cell Training Kit Teaching Workbench Equipment Educational Technology Renewable Energy Trainer Solar Power Teaching System

INQUIRY

Description

TB-220726-V-204 Hydrogen Fuel Cell Training Kit Teaching Workbench Equipment Educational Technology Renewable Energy Trainer Solar Power Teaching System
1. Equipment introduction
1.1 Overview
The current economic development model of mankind based on the consumption of non-renewable energy sources such as coal, oil, and natural gas has led to increasingly prominent problems of environmental pollution and the greenhouse effect. In order to realize the sustainable development of human society and establish a harmonious relationship between man and nature, the development of green energy such as wind energy, water energy, solar energy, biomass energy, geothermal energy, and ocean energy has become a topic of great concern to countries around the world.
As a clean energy source that can store waste energy and promote the transformation from traditional energy to green energy, hydrogen energy has an energy density 3 times that of oil and 4.5 times that of coal. It is regarded as a disruptive technology direction for the future energy revolution.

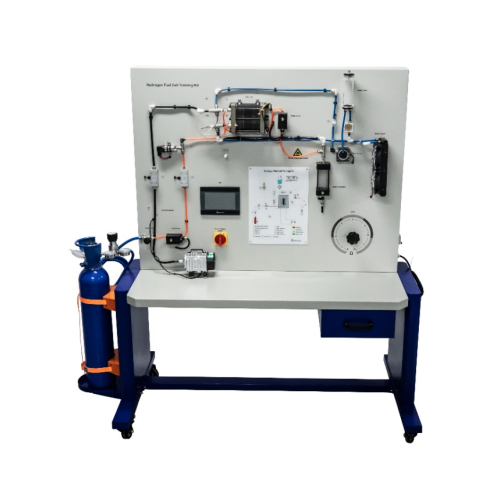

The hydrogen fuel cell training kit is a demonstration device based on the principle of hydrogen fuel cell power generation, which can help users understand the working principle and power generation capabilities of hydrogen fuel cells.
1.2 Features
1. The hydrogen fuel cell training kit device has excellent grounding performance and can ensure the safety of users.
2. The hydrogen fuel cell training kit device adopts a modular design, and the experimental functions can be clearly displayed through the device modules.
3. The hydrogen fuel cell training kit device adopts an electrically integrated design, which greatly reduces the size of the equipment and allows the equipment to be used for experiments in more environments.
4. The hydrogen fuel cell training kit is equipped with a visual data screen and communication functions, allowing users to view experimental data in real time and conduct experiments relying on remote control communication functions.
2. Technical parameters
Input power: single-phase AC110V 60Hz
Size: 1820*860*1980
Weight: 230KG
Working conditions: ambient temperature -10℃～+40℃; relative humidity <85% (25℃)

3. Components list and detailed introduction
3.1 Main part

No	Name
1	hydrogen fuel cell
2	Pressure Sensor
3	Flow Sensors
4	HMI touchscreen
5	load switch
6	Hydrogen cylinder master control valve
7	air pump
8	Hydrogen cylinder
9	cooling water container
10	The electromagnetic valve
11	visible transparent window
12	water cooling fan
13	Cooling water circulation pump
14	Reaction product container
15	Adjustable disk resistance
16	breaker

3.2 Equipment configuration list

No	Name	Qty
Component 1	hydrogen fuel cell	1
Component 2	Pressure Sensor	1
Component 3	Flow Sensors	2
Component 4	HMI touch screen	1
Component 5	load switch	1
Component 6	air pump	1
Component 7	Hydrogen cylinder	1
Component 8	The electromagnetic valve	2
Component 9	water cooling fan	1
Component 10	Cooling water circulation pump	1
Component 11	Adjustable disk resistance	1
Component 12	breaker	1

3.3 Accessories

No	Name	Qty
1	Software CD	1
2	USB adapter network card	1
3	cable	1

4. Experiment list
Experiment 1 Understand the electrical functional principles of hydrogen fuel cell training kit
Experiment 2 Understand the design and function of the hydrogen fuel cell training kit
Experiment 3 Demonstration of applying hydrogen fuel cell training kit to generate electricity
Experiment 4 Demonstrate factors affecting the working efficiency of hydrogen fuel cells
Experiment 5 Demonstrating the supporting software functions of the hydrogen fuel cell training kit
