1.1 Overview

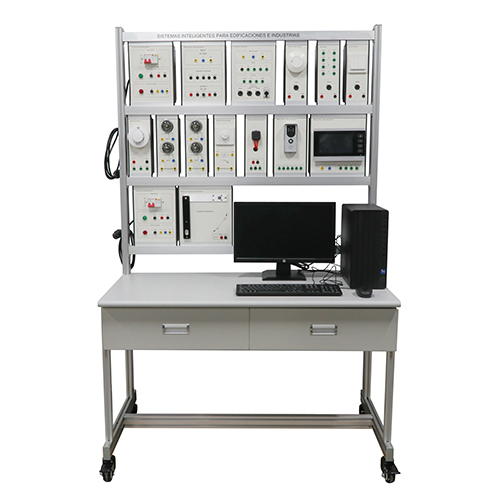

A building and industrial intelligent system, including a main part and a hanging box part. The main part is composed of an aluminum profile frame. A universal wheel is installed at the bottom of the aluminum profile frame to facilitate the movement of the equipment. The middle end of the aluminum profile frame The installation consists of a training table, which is made of 25mm thick high-density base material, and the surface is made of high-temperature and high-pressure fireproof board. The upper end of the aluminum profile frame is installed with a multi-layer frame, and the hanging box is plugged and fixed on the in the frame.
From top to bottom and from left to right, the hanging box part contains single-phase energy source, video module intercom 3, programmable controller, motion sensor, binary output, button group, smoke detector, light bulb load, and intensity adjustment. receiver, receiver/transmitter, video module intercom 2, video module interconnector, single-phase energy source and electric door lock module.
In addition, it is equipped with a computer for collecting and analyzing relevant data.
4mm safety electrical cable can be used to complete different training contents by connecting different hanging boxes. Through relevant experiments, one can become familiar with the operating characteristics of building industrial control components and the use of various industrial control components, master control principles and methods, and train students accordingly knowledge and skills. It is generally suitable for teaching and skill training assessment in higher vocational colleges, higher vocational schools, secondary vocational schools, and technical schools.
1.2 Features
(1) The training platform adopts an aluminum profile column frame structure, which is simple and elegant as a whole. It is equipped with universal wheels at the bottom, which can be flexibly moved, and the height can be adjusted individually according to the ground conditions. Measuring instruments and training power supplies are built into hanging boxes, which are easy to use and not easily damaged.
(2) The combination of software and hardware can complete training content in a variety of subjects.
(3) The training platform has a good safety protection system.
2 Technical parameters
Input power supply: single-phase three-wire AC220V±10%, 60Hz
Size: 1270*820*2140
Machine capacity: <2KVA
Weight: <250Kg
Ambient temperature: -10℃～+40℃
Relative humidity: <85% (25℃)
