ZE3110P Measurement Meters Training Frame Teaching Workbench School Equipment Training Electrical Training Equipment

INQUIRY

Description

ZE3110P Measurement Meters Training Frame Teaching Workbench School Equipment Training Electrical Training Equipment

1. Product Introduction
1.1 Product Description

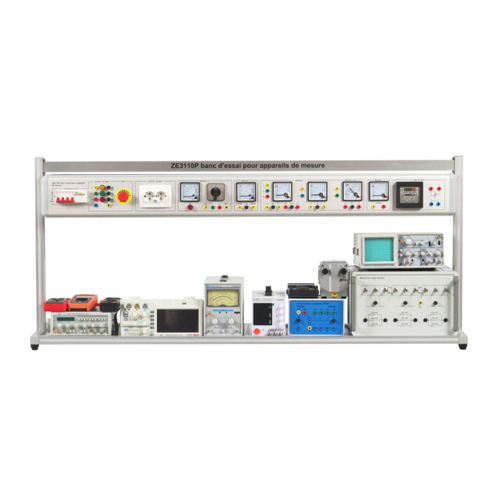

This training platform includes various types of electrical measuring instruments. Through relevant experiments, students can become familiar with the characteristics of electrical instruments, master their measurement principles and wiring methods, and cultivate corresponding knowledge and skills. It is suitable for teaching and skill training assessment of relevant majors in higher vocational colleges, technical colleges, secondary vocational schools and technical schools.
1.2 Product Features
(1) The training platform adopts an aluminum profile column frame structure, and the power supply and measuring instruments are integrated and installed inside, which is safe and convenient to use and not easy to damage.
(2) The measuring instruments are placed on the instrument shelf, and the relevant measuring instruments can be flexibly added or removed according to the experimental subject settings to meet the needs of different users.
(3) The training platform has a good safety protection system.
2. Technical Specifications
2.1 Basic Technical Parameters

Working power supply	Three-phase Five-wire system AC380V/50Hz
Ambient temperature	-10℃～+40℃
Ambient humidity	＜85%（25℃）

2.2 Equipment Parameters

Dimensions	1600mm400mm705mm
Weight	100kg

3. Product Component Names and Functions
3.1 Equipment Main Body

NO.	Name	Qty.
1	Circuit breaker	1
2	Three-phase power terminals	1
3	Emergency stop switch	1
4	Power outlet	1
5	Voltmeter	1
6	Power indicator light	4
7	Phase indicator switch	1
8	Three-phase power terminals	4
9	Ammeter	1
10	Ammeter external terminals	2
11	Three-phase wattmeter	1
12	Three-phase wattmeter external terminals	7
13	Single-phase wattmeter	1
14	Single-phase wattmeter external terminals	4
15	Power factor meter	1
16	Power factor meter external terminals	4
17	Frequency meter	1
18	Frequency meter external terminals	2
19	Energy meter	1
20	Energy meter external terminals	4
21	Digital multimeter	1
22	Capacitance and inductance meter	1
23	Clamp ammeter	1
24	Digital oscilloscope	1
25	Analog multimeter	1
26	Megaohmmeter	1
27	Analog oscilloscope	1
28	Signal generator	1
29	Transistor millivoltmeter	1
30	DC regulated power supply	1
31	Resistor box	1
32	Single-phase transformer box	1
33	Frame	1

3.2 Equipment accessories

NO.	Name	Qty.
1	Signal generator test leads	2
2	Digital oscilloscope USB cable	1
3	Device debugging tool	1
4	DC regulated power supply test leads	2
5	Digital oscilloscope test leads	2
6	Device debugging tool	1
7	Analog oscilloscope test leads	2
8	Millivolt meter test leads	2
9	Meter test leads	2

NO.	Name	Qty.
1	Blue 4mm electrical safety cable	5
2	Yellow 4mm electrical safety cable	6
3	Green 4mm electrical safety cable	6
4	Red 4mm electrical safety cable	6
5	Two-color 4mm electrical safety cable	6
6	Power 4mm electrical safety cable	6

NO.	Name	Qty.
1	Clamp ammeter	1
2	Digital multimeter	1
3	Analog multimeter	1
4	Inductance and capacitance meter	1

4 Product Teaching Experiment List
(1) The use of Power Supply Box
(2) The use of Transformer Box
(3) The use of Clamp-on Amperemeter
(4) The use of Pointer Multimeter
(5) The use of Digital Multimeter
(6) The use of Digital Capacitance Meter
(7) The use of Megohmmeter
(8) The use of Transistor Millivoltmeter
(9) The use of Signal Generator
(10) The use ofn Analog Oscilloscope
(11) The use of DC Regulated Power Supply
(12) The use of Digital Oscilloscope
