SS25114R01 ECO Wiring Station Teaching Workbench Equipment Educational Technology Electrical Training Equipment
1. Product Introduction
1.1 Product Description

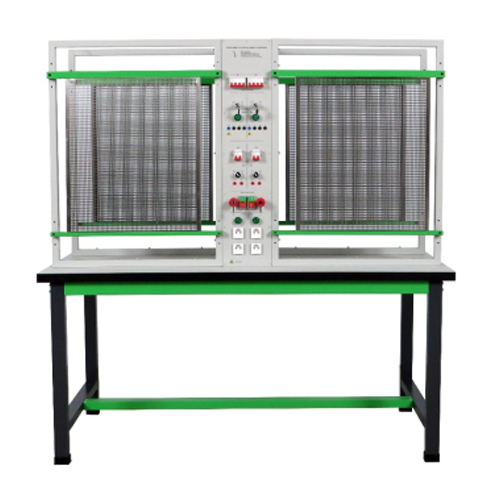

The ECO wiring station is an environmentally friendly electrical wiring training device designed for teaching, mainly used for practical teaching of electrical control, lighting and other courses. Its core features are green materials, economical and durable, safe and convenient. It aims to help students master skills such as circuit connection and troubleshooting through modular design, while reducing teaching costs and maintenance difficulties.
1.2 Product Features
Long-life design: corrosion-resistant, anti-aging, long service life, and reduced long-term replacement costs.
Energy-saving design: optimize circuit structure, reduce power loss, and support low-voltage safety training
Multi-functional training support: can be used for most wiring circuit operations such as incandescent lamps, fluorescent lamps, touch switches, voice-controlled switches and other lighting circuits, and a series of wiring training.
Safe and reliable: The 4mm safety terminal block used has metal contacts that cannot be touched in the non-operating state to prevent students from accidentally touching it. The wiring station is made of high-insulation paint, which is not easy to scratch, has a wide operating temperature range, is dustproof and waterproof, and avoids the risk of short circuits caused by liquid splashing and dust intrusion.
Emergency cut-off: The emergency stop switch and circuit breaker can effectively cut off all outputs. When the circuit is overloaded or short-circuited, the circuit breaker can effectively cut off the power supply to ensure safety.
2. Technical Specifications
Technical Parameters
Input Power:
Three-phase five-wire AC380V
Dimensions: 4 pieces 1000mm*750mm frames
1 piece 1800mm*750mm high temperature laminated coating tray
Weight: 200kg

3. Product component names and functions

No.	Name	Qty.
1	Circuit breaker	4
2	Key knob switch	2
3	Power output indicator light	4
4	4mm safety electrical cable terminal	14
5	Knob switch	2
6	Start/stop button	2
7	Key emergency stop switch	2
8	French plug	4
9	Grid Framework	4

4. Product accessories name and function introduction

No.	Name	Qty.
1	Plastic mounting clips	600
2	Flat head self tapping	600
3	4mm safety electrical cable green	5
4	4mm safety electrical cable black	5
5	4mm safety electrical cable yellow	5
6	4mm safety electrical cable double color	5
7	4mm safety electrical cable red	5
8	4mm safety electrical cable blue	5

5. Experimental list
1. Basic use of equipment.
