Description

UOP4 Solid/Liquid Extraction Unit Educational Equipment School Training Bench Fluids Engineering Training Equipment

I.Product Overview

1.1 Overview

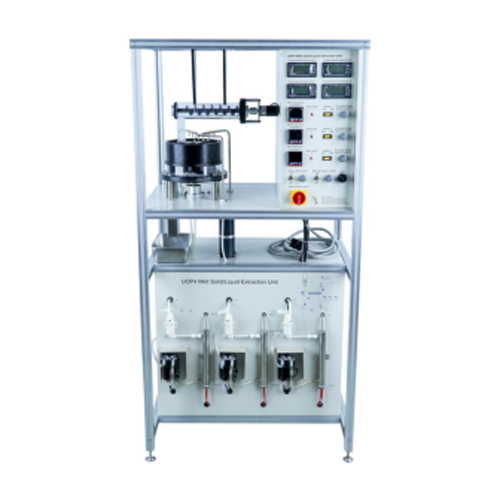

The UOP4 MKII solid/liquid extraction device is designed to help students understand the principle of solid-liquid extraction, and use special solvents to extract certain components in solids or liquids. This component needs to be compatible with special solvents, and can be combined with Special solvent separation. When using this equipment for extraction, it is necessary to clearly know what components need to be extracted in the experiment, what kind of solvent this component needs to be extracted, and other unnecessary components cannot be introduced. In the teaching demonstration experiment, the UOP4 MKII solid/liquid extraction device uses porous polymer particles (solid carrier containing KHCO3, which needs to be prepared in advance) as the extraction material, the component to be extracted is KHCO3, and the extraction solvent is pure water.

1.2 Features

(1) The UOP4 MKII solid/liquid extraction device adopts an integrated design, and the electrical and mechanical parts are installed on a frame, which is safe and reliable, and greatly reduces the dependence of the equipment on the area occupied by the experiment.
(2) The demonstration experiment of UOP4 MKII solid/liquid extraction device uses safe experimental materials (solid carrier containing KHCO3), and the extraction solvent is pure water.
(3) In the design and production process of UOP4 MKII solid/liquid extraction device, a variety of anti-corrosion materials are considered and used to ensure better reliability and longer life of the equipment.

II.Performance Parameter

Input power: AC220V 50Hz
Weight: ＜200kg
Size: 850mm*670mm*1750mm
Working conditions: ambient temperature -10℃～+40℃; relative humidity <85% (25℃)

III.Components List and Detailed Introduction

3.1 Main part

Number	Name
1	Experimental frame
2	Funnel Screw Conveyor
3	3-Stage Solvent Spray Hose
4	2-Stage Solvent Spray Hose
5	1st stage solvent spray hose
6	Rotary unit module
7	Rotary unit module drive motor
8	Extract solid box
9	Peristaltic pump
10	Solvent heating channel
11	Heater
12	Temperature Sensor
13	Quick-loading conductivity electrode

3.2 Power box part

Number	Name
1	Temperature conductivity meter module
2	PID temperature controller module
3	Overheat Indicator Module
4	Peristaltic pump control knob
5	Heating switch module
6	USB interface
7	Funnel Feed Control Knob
8	Rotary unit control knob
9	Load switch

3.3 Equipment configuration list

Number	Name	Quantity
Component 1	Rotary unit module drive motor	1
Component 2	Feed Conveyor Drive Motor	1
Component 3	Quick-loading conductivity electrode	3
Component 4	Peristaltic pump	3

3.4 Accessories

Number	Name	Quantity
1	KHCO₃	2
2	Software disc	1
3	USB cable	1
4	Solid carrier particles	2

IV.Experiment List

Experiment 1 Open-loop batch extraction
Experiment 2 Closed-loop batch extraction
Experiment 3 One-stage continuous extraction
Experiment 4 Two-stage continuous extraction
Experiment 5 Three-stage continuous extraction
