Gas Absorption Column School Educational Equipment Educational Laboratory Bench Lab Fluid Mechanics Equipment

Name: Gas Absorption Column School Educational Equipment Educational Laboratory Bench Lab Fluid Mechanics Equipment
Brand: Jinan Should Shine Didactic Equipment Co., Ltd.
SKU: UOP7
Availability: InStock

Item No.: UOP7

UOP7 Gas Absorption Column School Educational Equipment Educational Laboratory Bench Lab Fluid Mechanics Equipment

INQUIRY

Description

UOP7 Gas Absorption Column School Educational Equipment Educational Laboratory Bench Lab Fluid Mechanics Equipment

I.Product Overview

1.1 Overview

Since the Industrial Revolution, human activities have led to a dramatic increase in the concentration of greenhouse gases in the atmosphere. Carbon dioxide, if not the most abundant gas among them, is the most problematic of these gases. In fact, its concentration is so high that its contribution accounts for two-thirds of the total contribution of warming gases.
In order to alleviate the concentration of CO2 in the atmosphere, the focus is on controlling the flue gas at the outlet of power plants. In fact, 75% of the substantial increase in atmospheric CO2 over the past few decades is attributable to the burning of fuels for electricity generation.
Industry has responded to help reduce CO2 emissions, and currently the most advanced method of capturing CO2 from flue gases is absorption towers using amine absorbers. But this method has disadvantages, and in this context, research is conducted to develop new CO2 capture methods.

1.2 Features

In the equipment, the chemical absorption of CO2 by sodium hydroxide solution is used to analyze the CO2 content in the gas absorption columns to compare their efficiency in capturing CO2 from the flue gas.

II.Performance Parameter

Input power: AC220V±10% 50Hz
Weight:<200kg
Working conditions: Ambient temperature -10℃～+40℃ Relative humidity <85% (25℃)
Size: 1380 * 880 * 2180 (mm)

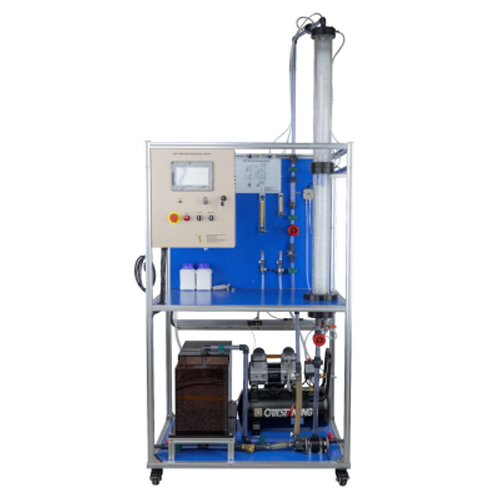

III.Components List and Detailed Introduction

3.1 Main part

Number	Name
1	Frame
2	Water tank
3	Accessories
4	Power box
5	Gas absorption column
6	Differential pressure transmitter
7	Water flow meter
8	CO2 flow meter
9	Air flow meter
10	Electronic water flow meter
11	Electronic gas flow meter
12	Air compressor
13	Water pump

3.2 Power box part

Number	Name
1	Emergency button
2	Power Indicator
3	Solenoid valve switch knob
4	Water pump switch knob
5	Network port
6	Water pump speed knob
7	Key
8	Touchscreen

3.3 Equipment configuration list

Number	Name	Quantity
Component 1	Water flow meter	1
Component 2	Air flow meter	1
Component 3	CO2 gas flow meter	1
Component 4	Differential pressure transmitter	2
Component 5	Carbon dioxide transmitter	1
Component 6	Water pump	1
Component 7	Filter	1
Component 8	PVC gate valve	2
Component 9	Temperature Sensor	2
Component 10	Solenoid valve	1
Component 11	Air pressure regulating valve	1
Component 12	Electronic gas flow meter	2
Component 13	Electronic water flow meter	1
Component 14	Air compressor	1

3.4 Accessories

Number	Name	Quantity
1	U disk	1 piece
2	Cable	1 piece
3	Sodium hydroxide	2 bottles

IV.Experiment List

Experiment 1 Chemical reaction experiment between sodium hydroxide solution and CO2
Experiment 2 Determination of water, CO2 and air flow and temperature
Experiment 3 PID control system
Experiment 4 Use of gas absorption column equipment software
Experiment 5 Measure the CO2 concentration at the gas inlet and outlet
Experiment 6 Sensor Calibration
Experiment 7 Investigate the fundamentals of using packed columns to absorb gases into liquids
