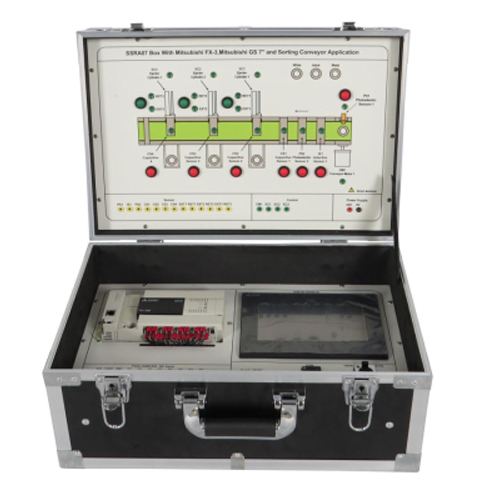

ZE3458 Box With Mitsubishi FX-3, Mitsubishi GS 7" and Sorting Conveyor Application School Training Bench Didactic Equipment Electrical Training Equipment
1. Product Introduction
1.1 Product Description
The box with Mitsubishi FX-3, Mitsubishi GS 7-inch and sorting conveyor application is a practical training equipment designed for teaching majors such as mechatronics, automation, and electrical engineering. The box simulates industrial sorting scenarios and integrates PLC control, simulated pneumatic control, simulated sensor detection, simulated motor drive, and HMI technologies. Through an open wiring design, students can complete circuit connection, program writing, and troubleshooting by hand, cultivating comprehensive engineering capabilities.
1.2 Product Features
The key electrical interfaces of the box for sorting conveyor application also provide terminal blocks to meet the needs of basic wiring and complex system construction.
The box and equipments for sorting conveyor application are fully configured and can be used in combination to complete the practical training content of various courses.
The box for sorting conveyor application adopts a good safety protection system.
(4) The box for sorting conveyor application has good portability, reduces space occupation, and is convenient for training in different venues and environments.
(5) The box used for the sorting conveyor can simulate real-life scenarios, allowing trainees to receive training in a close-to-actual working environment.
(6) The box used for the sorting conveyor can provide a systematic training course covering the basic knowledge, operation methods, maintenance, and other aspects of safety facilities.
2. Technical Specifications
2.1 Basic Technical Parameters
| Working power supply |
Single-phase three-wireAC220V/50Hz |
| Ambient temperature |
-10℃～+40℃ |
| Ambient humidity |
＜85%（25℃） |
2.2 Equipment Parameters
| Dimensions |
480mm*320mm*260mm |
| Weight |
20kg |
3. Product Component Names and Functions
3.1 Device Main Body
| NO. |
Name |
Qty. |
| 1 |
Mitsubishi PLC |
1 |
| 2 |
Mitsubishi HMI |
1 |
| 3 |
S/S terminal |
1 |
| 4 |
Power input terminal |
2 |
| 5 |
PLC input terminal |
16 |
| 6 |
COM terminal |
4 |
| 7 |
PLC output terminal |
16 |
| 8 |
HMI power input |
3 |
| 9 |
PLC power input |
3 |
| 10 |
USB port |
1 |
| 11 |
DC 24V power output |
3 |
| 12 |
Ethernet port |
1 |
| 13 |
Power switch |
1 |
| NO. |
Name |
Qty. |
| 1 |
Indicator light |
17 |
| 2 |
On/off button |
10 |
| 3 |
Input terminal |
13 |
| 4 |
Output terminal |
4 |
| 5 |
Input power terminal |
2 |
3.2 Equipment accessories
| NO. |
Name |
Qty. |
| 1 |
Network cable |
1 |
| 2 |
USB |
1 |
| 3 |
USB cable |
1 |
| 4 |
Black 1m 2mm electrical safety cable |
10 |
| 5 |
Red 1m 2mm electrical safety cable |
10 |
| 6 |
Power cord |
1 |
| 7 |
Yellow 1m 2mm electrical safety cable |
15 |
| 8 |
Blue 1m 2mm electrical safety cable |
5 |
| 9 |
Green 1m 2mm electrical safety cable |
10 |
3.3 Equipment screen
| NO. |
Name |
Qty. |
| 1 |
Cylinder retracted status indicator |
3 |
| 2 |
Cylinder extended status indicator |
3 |
| 3 |
Cylinder operating status indicator |
3 |
| 4 |
Bindle 1 photoelectric detection button and indicator |
1 |
| 5 |
Bindle 2 photoelectric detection button and indicator |
1 |
| 6 |
Bindle 3 photoelectric detection button and indicator |
1 |
| 7 |
Material 1 photoelectric detection button and indicator |
1 |
| 8 |
Material 2 photoelectric detection button and indicator |
1 |
| 9 |
Material 3 photoelectric detection button and indicator |
1 |
| 10 |
Inlet button and indicator |
1 |
| 11 |
Motor running indicator |
1 |
4. Product Teaching Experiment List
(1) Software Installation and Communication
(2) Equipment Basic Experiment
